Ứng dụng sản phẩm
- This equipment is mainly used to assess the resistance of the complete footwear to water penetration during walk but can be also used to assess the flexing endurance of complete footwear in wet and dry conditions.
Thông số kỹ thuật

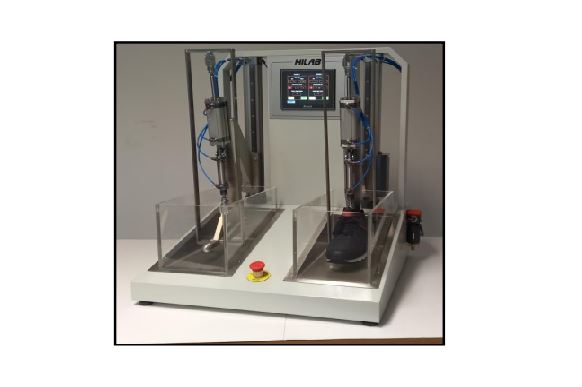

- The equipment has two stations, which can be used at same time or individually, even one working in water and the other in dry conditions, or different type of footwear. Each station has an independently controlled air cylinder to move up and down the sample in and out of the tank, allowing that after a number of pre-set cycles the sample stops flexing and automatically comes out of the tank.
- The assessment of water penetration is made visually after each inspection period and at end of test.
- All movements are made pneumatically, and the command of the equipment is made by means of individual counters.
- Manual movements are allowed to permit pre-flex the sample to check if everything is ok before immersing in the water.
- Tanks are movable to allow drain off and clean. At end of test cycles, the sample will come up automatically, and a buzzer is activated to alert to assess the test result. Tanks are made of acrylic, and tanks supports are made in stainless steel.
- All other parts of the equipment contacting with sample and water are in stainless steel, aluminum, rubber, or plastic, to avoid oxidation.
Tiêu chuẩn
- EN ISO 20344-5.19:2021; and TM230.
