Lace to Lace Abrasion Tester with 6 stations

Ứng dụng sản phẩm
Thông số kỹ thuật
Tiêu chuẩn
Video

Ứng dụng sản phẩm

Purpose – assess abrasion resistance of footwear laces, according to ISO 22774 and SATRA TM 154.

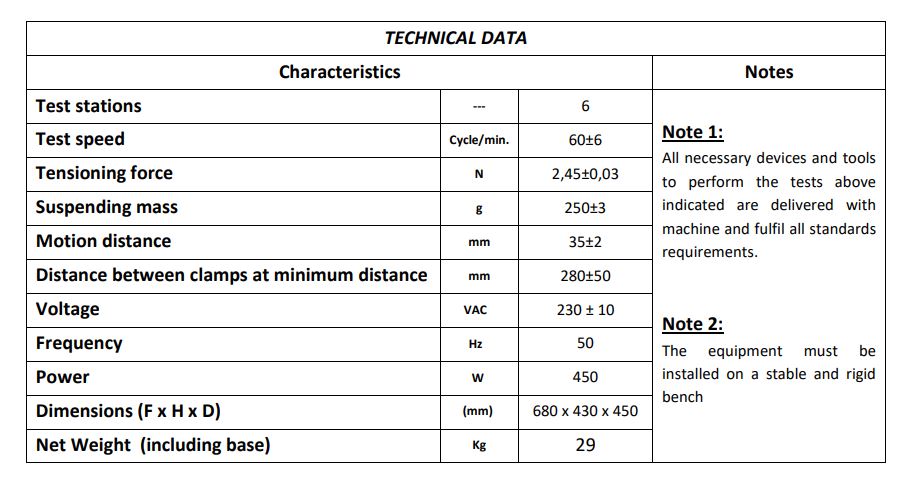

Thông số kỹ thuật

This equipment is delivered complete with all accessories to perform the test according three methods:

Method 1: lace to lace;
Method 2: lace to standard eyelet;
Method 3: lace to eyelet (from footwear);

The machine is controlled by a touch screen, through which is inserted the test parameters.
Each station has an independent sensor that allows to record the number of cycles made in each station.
When one lace does not resist till the number of cycles imposed in the main counter, the weight falls over a stop system and the individual counter stops recording the number of cycles made by that lace.
If all laces broken before the total of cycles imposed in the main counter, machine stops, and individual results are showed.

Tiêu chuẩn

ISO 22774 and SATRA TM 154.

Video
