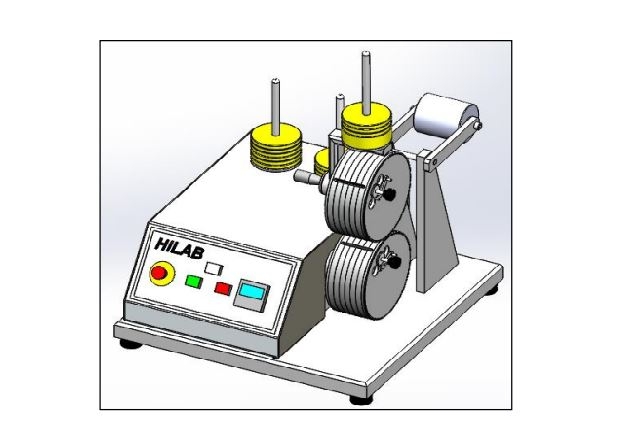

Velcro Fatigue Tester

Model: H019
Producer: HiLAB-Portugal
Giá: Contact
 Simulate the use of the “Velcro” by repeated closing and opening, before performing other physical tests, according EN ISO 22776; SATRA TM123.
Buy now Nationwide Delivery
0948279988 Contact phone number

Ứng dụng sản phẩm

  •  Simulate the use of the “Velcro” by repeated closing and opening, before performing other physical tests, according EN ISO 22776; SATRA TM123.

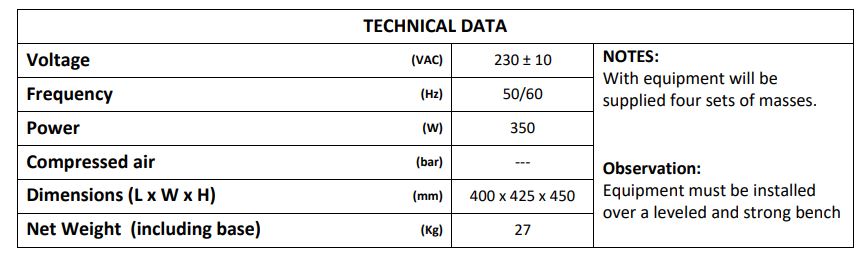

Thông số kỹ thuật

The main characteristics are:
• Easy assemble of the samples.
• Four different sets of masses to compose
the load between drums, according to
sample width.
• Auto reverse rotation facility to allow
that drums reverse the rotation every 30
seconds, as specified by standard.
- All pieces of this machine that are contacting with test sample are made from stainless steel or
aluminum and strong enough to avoid bend during test.
- This machine, as all our machines, are projected and produced according to all international safety
regulations.

Tiêu chuẩn

  • EN ISO 22776;
  • SATRA TM123.
